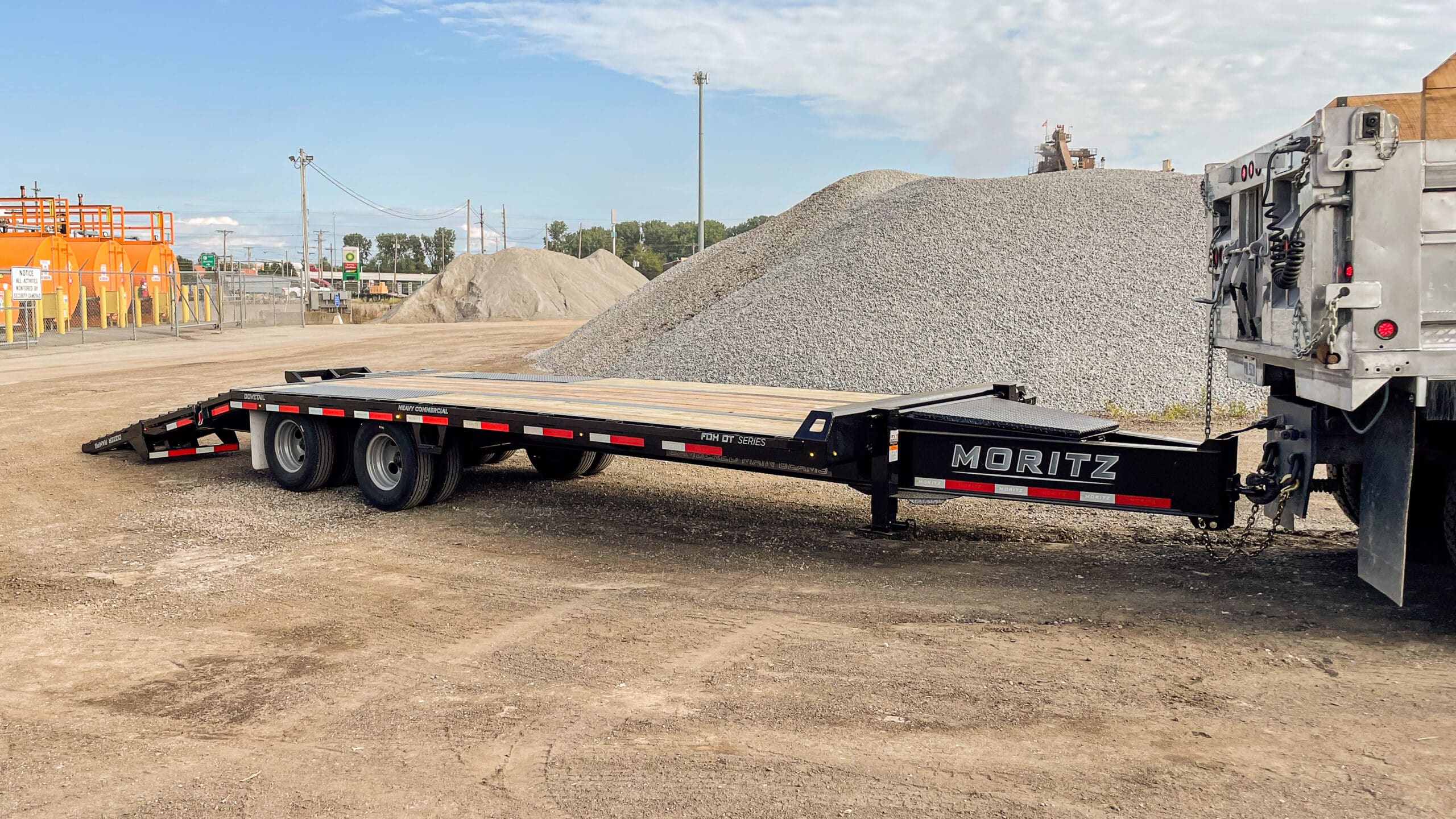

FDPH DT Series | Moritz Trailers & Truck Bodies

Specifications

Approximate Deck Height	34"
Overall Width	102"
Chassis	Torque Chassis (torque resistant cross tubes) and Cambered Main Beams
Brakes	Electric (All Wheels)
Suspension	7K & 8K Torsion / 10k & 12K Spring
Stake Pockets	3" x 1/4"
Stake Pockets Inside Dimensions	4.125" x 1.875"
Tires	ST235/80 R16 LRE
Wheels	16" (8-Bolt)
Jacks	Dual 15000lb Spring-Loaded Foot
Pintle Hitch	21Ton
Cross-Members	16" center
Side Rails	6" @ 8.2lb/ft channel
Safety Chains	3/8" w/ Latch Hook
Lights & Wiring	LED Lights & Sealed Wire Harness w/ Moisture-Resistant Connectors
Floor	2" Treated Yellow Pine
Ramps	Heavy Duty Steel w/ Adjustable Spring Tension
Dovetail	5' Self Cleaning
Breakaway Kit	w/ Charger
Steps	Deck Access

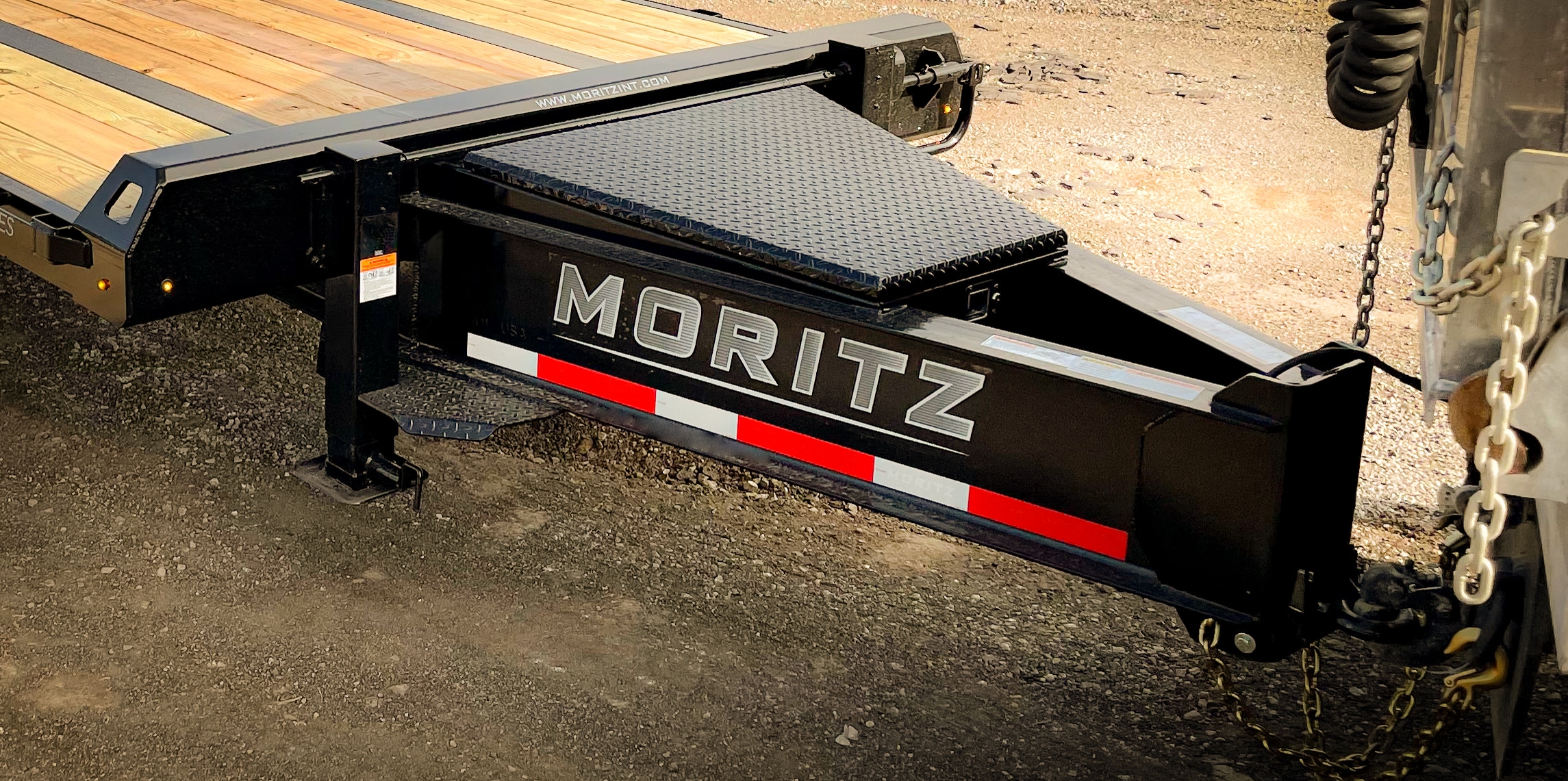

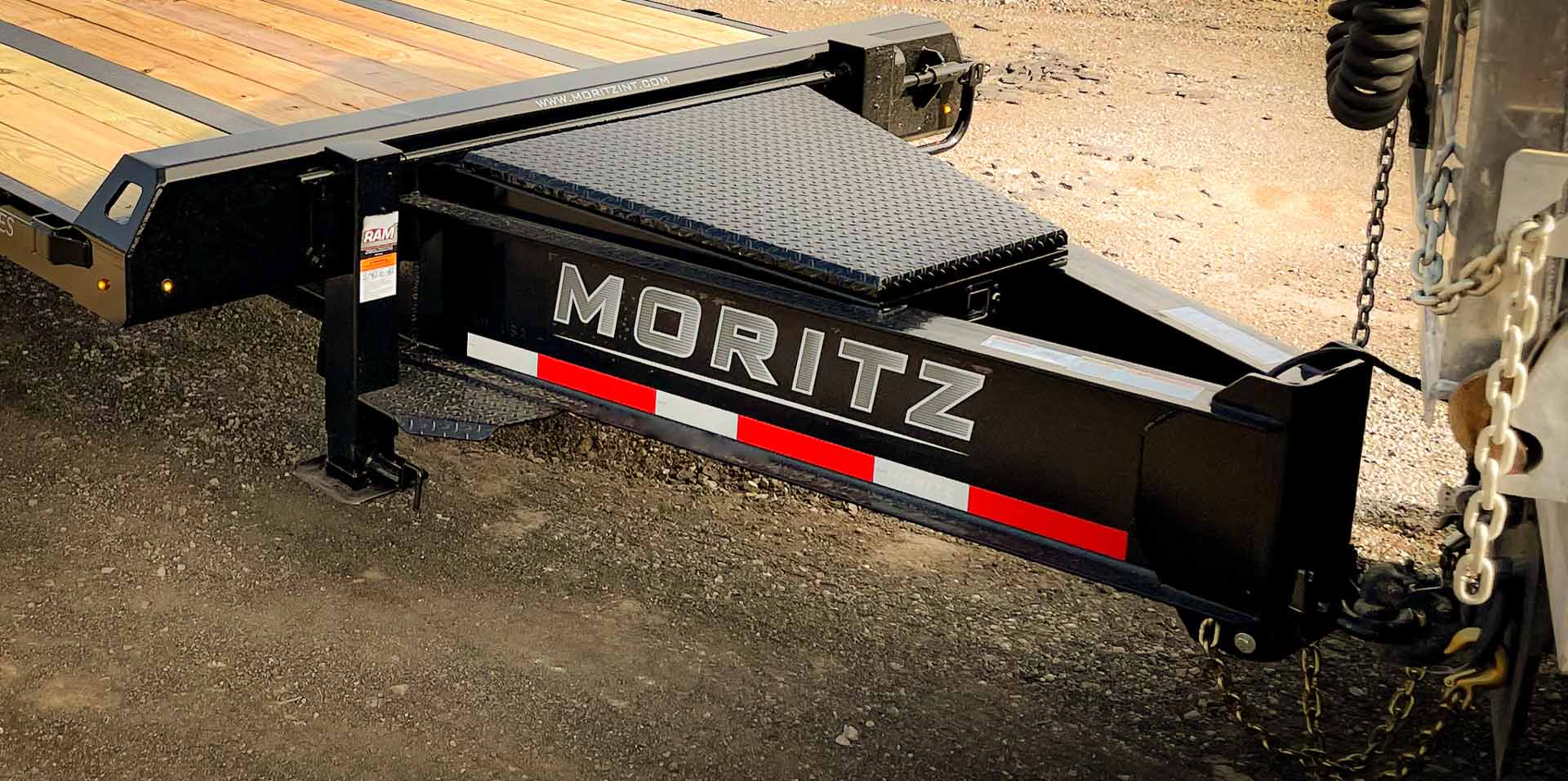

Tool Box	Extra Large Steel Diamond Plate Toolbox w/ Light Inside and Chain Rack

GVWR	Frame Length (5' Dovetail)	Main Beams	Axles	Tires & Wheel
15900 lb	18', 20' ,22', & 25'	12″ @ 14 lb/ft	2 – 7k torsion	ST235/80R 16 LRE Single
17900 lb	18', 20' ,22', & 25'	12″ @ 14 lb/ft	2 – 8k torsion	LT215/75R 17.5 LRH Single
22900 lb	18', 20' ,22', & 25'	14″ @ 22 lb/ft	2 – 10k spring	ST235/80R 16 LRE Dual
25900 lb	18', 20' ,22', & 25'	14″ @ 22 lb/ft	2 – 12k spring	ST235/80R 16 LRE Dual
40000 lb	18', 20' ,22', & 25'	16″ @ 26 lb/ft	2 – 16k spring	LT215/75R 17.5 LRH Dual

GVWR	Axles
15900 lb	7000 lb with Electric Brakes & Easy Lube Spindles
17900 lb	8000 lb with Electric Brakes & Easy Lube Spindles
22900 lb	10000 lb with Electric Brakes & Oil Bath Hubs
25900 lb	12000 lb with Electric Brakes & Oil Bath Hubs
40000 lb	16000 lb with Electric Brakes & Oil Bath Hubs

Available Ratings - 15900lb, 17900lb, 22900lb, 25900lb, and 40000lb GVWR

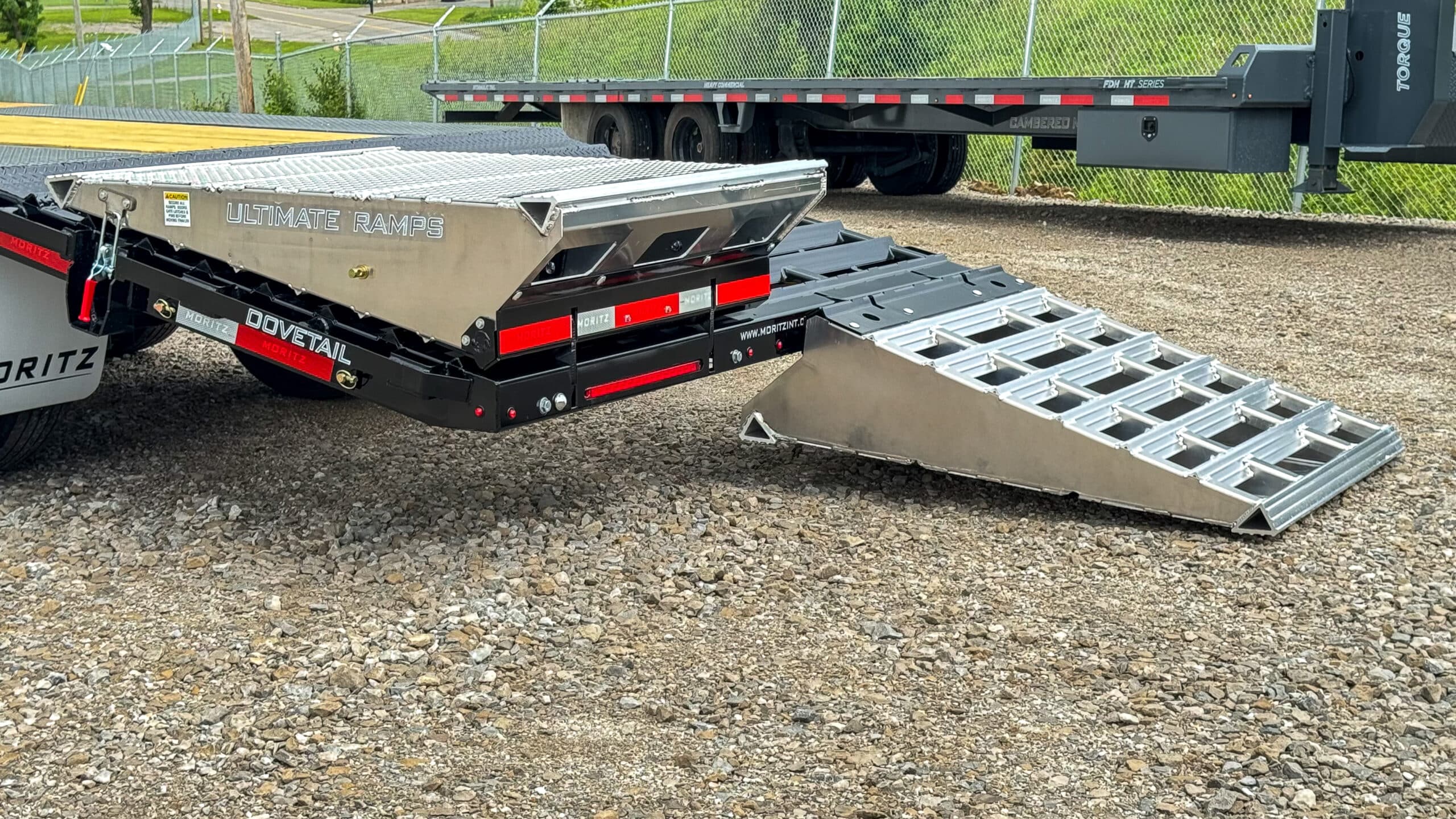

Optional Aluminum Wedge Ramps

Tool Box - Under Body 48" long x 15" tall x 16" deep

Solar Charger (for use with hydraulic jacks)

Disc Brakes with electric over hydraulic brakes

Electric over Hydraulic Brakes (drum brakes)

Spare Tires & Wheels

Dual Two-Speed Jacks

Dual Hydraulic Jacks

Red

Black

Charcoal
