Specifications
Standard Specifications
- Deck Height 22-1/2" to 23-1/2"
- Between Fenders 81-1/2"
- Frame 8" Cold Formed Beam
- Stake Pockets 4" x 1/4" Formed Bar
- Tool Box Aluminum Diamond Plate

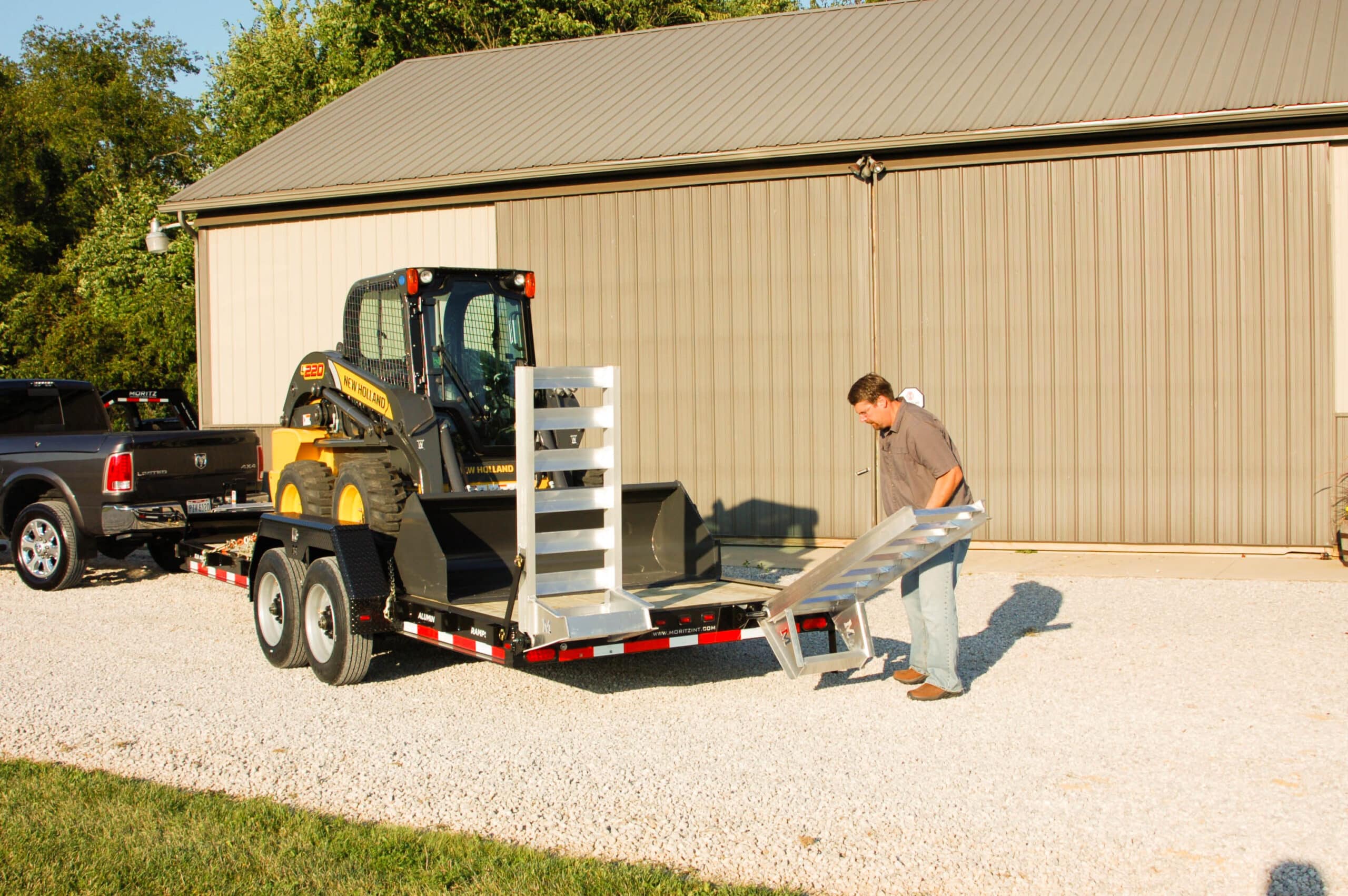

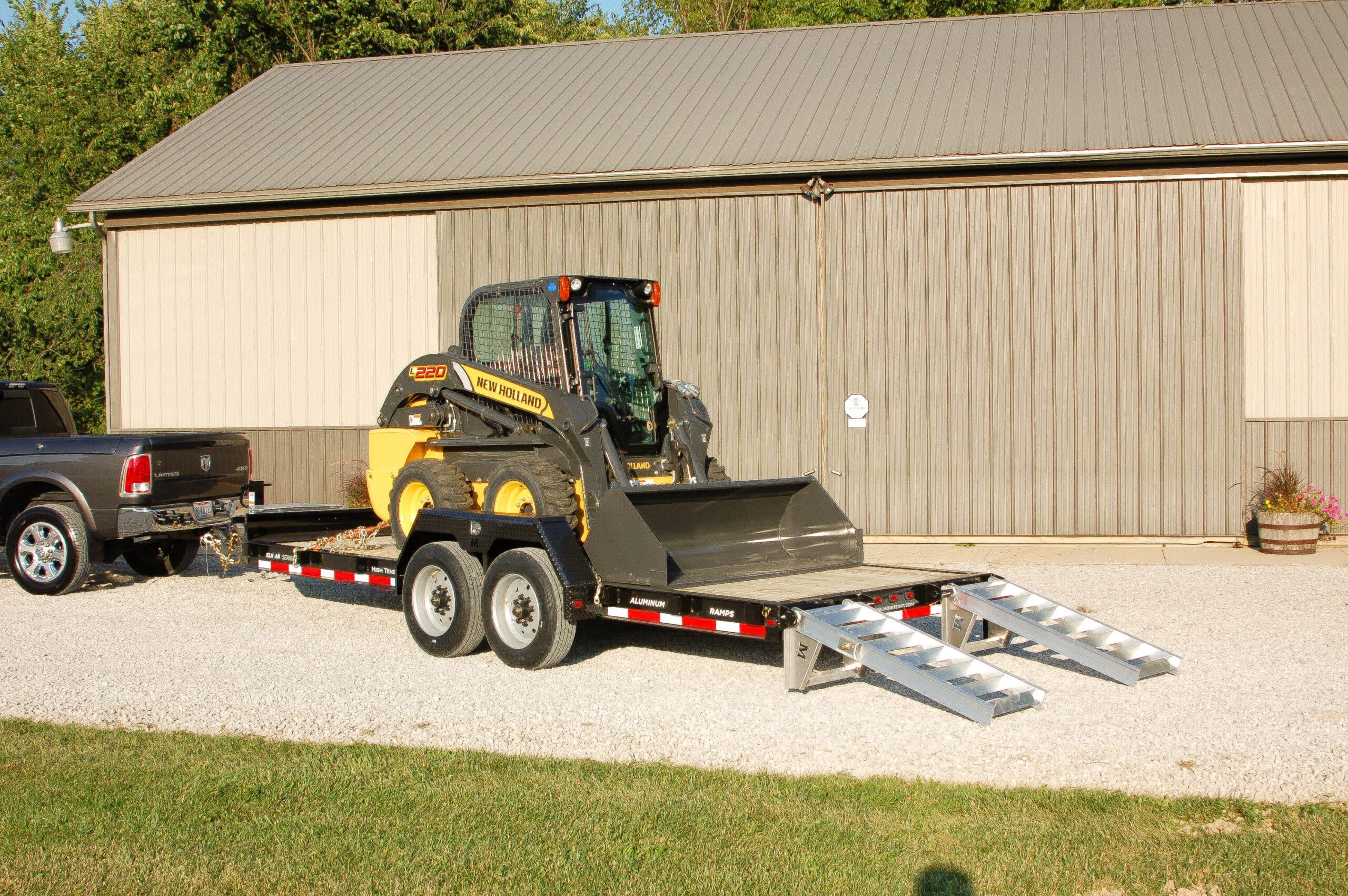

- Ramps Aluminum 4" Channel
- Fenders 1/8" Steel Diamond Plate
- Suspension Rubber Ride Suspension
- Brakes Electric (all wheels)
-
Tires & Wheels
12000 lb & 14000 lb GVWR - 16" 10 Ply Rated 8-Bolt
16000 lb GVWR - 17.5" 16 Ply Rated 8-Bolt - Jack 12000 lb
- Coupler 2-5/16" Adjustable (4-bolt)
- Safety Chains 3/8" with Latch Hook
- Lights & Wiring LED Lights & Sealed Wire Harness
- Warranty 2 Year Limited (see warranty for details)
Frame Specifications
| Frame & Tongue | Cross Members | Fenders |
|---|---|---|
| One Piece Cold Formed 8″ I-Beam | 3″ Channel on 16″ Centers | 1/8″ Steel Diamond Plate |
| 18′ Bumper Pull | |||
|---|---|---|---|
| GVWR | Beam Specs | ||
| 12000 lb. | 8″ @ 10 lb/ft | ||
| 14000 lb. | 8″ @ 10 lb/ft | ||
| 16000 lb. | 8″ @ 15 lb/ft | ||
| 20′ Bumper Pull | |||
|---|---|---|---|
| GVWR | Beam Specs | ||
| 12000 lb. | 8″ @ 10 lb/ft | ||
| 14000 lb. | 8″ @ 10 lb/ft | ||
| 16000 lb. | 8″ @ 15 lb/ft | ||
| 22′ Bumper Pull | |||
|---|---|---|---|
| GVWR | Beam Specs | ||
| 12000 lb. | 8″ @ 15 lb/ft | ||
| 14000 lb. | 8″ @ 15 lb/ft | ||
| 16000 lb. | 8″ @ 15 lb/ft | ||
| All Gooseneck Lengths | |||
|---|---|---|---|
| GVWR | Beam Specs | ||
| 12000 lb. | 8″ @ 15 lb/ft | ||
| 14000 lb. | 8″ @ 15 lb/ft | ||
| 16000 lb. | 8″ @ 15 lb/ft | ||
Axle Specifications
| GVWR | Axles |
|---|---|
| 12000 lb | 6000 lb with Electric Brakes & Easy Lube Spindles |
| 14000 lb | 7000 lb with Electric Brakes & Easy Lube Spindles |
| 16000 lb | 8000 lb with Electric Brakes & Easy Lube Spindles |
Weight Specifications
| Bumper Pull (estimated weights) | |||
|---|---|---|---|
| Length | 12000 GVWR | 14000 GVWR | 16000 GVWR |
| 18′ | 2900 lbs. | 2920 lbs. | 3740 lbs. |
| 20′ | 3060 lbs. | 3080 lbs. | 3900 lbs. |
| 22′ | 3500 lbs. | 3520 lbs. | 4080 lbs. |
| Gooseneck (estimated weights) | |||
|---|---|---|---|
| Length | 12000 GVWR | 14000 GVWR | 16000 GVWR |
| 18′ | 3680 lbs. | 3700 lbs. | 4520 lbs. |
| 20′ | 3840 lbs. | 3860 lbs. | 4680 lbs. |
| 22′ | 4280 lbs. | 4300 lbs. | 4860 lbs. |
Options
- Fenders with Built-In Tool Boxes
- Hydraulic Jack
- Pintle Ring
- Pallet Fork Holder
- Split Mesh Gates (Made from Steel)
- Spare Tire & Wheel
Colors
- Red
- Black
- Charcoal
