Specifications
Standard Specifications
- Deck Height 33"
- Deck Width 100"
- Suspension Rubber Ride (low maintenance)
- Brakes Electric (all wheels)
- Tires & Wheels 12000 lb & 14000 lb GVWR - 16" 10 Ply Rated 8-Bolt 16000 lb GVWR - 17.5" 16 Ply Rated 8-Bolt
- Coupler 2-5/16" Adjustable (4 bolt)
- Safety Chains 3/8" with Latch Hook
- Lights & Wiring LED with Sealed Modular Wiring Harness
- Warranty 2 Year Limited (see warranty for details)
- Floor 2" Yellow Treated Pine
- Ramp Construction Aluminum 4" Channel
Frame Specifications
| Frame & Tongue | Cross Member | Fenders | |||||
| 8″ I-beam | 3″ channel | 3/16 steel diamond | |||||
| (12k & 14K 24” Center) (16k 16” centers) | |||||||
| 18′ Bumper Pull | |||||||
| GVWR | Beam Specs | ||||||
| 12000 | 8” @ 10 lb/ft | ||||||
| 14000 | 8” @ 10 lb/ft | ||||||
| 16000 | 8” @ 15 lb/ft | ||||||
| 20′ Bumper Pull | |||||||
| GVWR | Beam Specs | ||||||
| 12000 | 8” @ 10 lb/ft | ||||||
| 14000 | 8” @ 10 lb/ft | ||||||
| 16000 | 8” @ 15 lb/ft | ||||||
| 22′ Bumper Pull | |||||||
| GVWR | Beam Specs | ||||||
| 12000 | 8” @ 15 lb/ft | ||||||
| 14000 | 8” @ 15 lb/ft | ||||||
| 16000 | 8” @ 15 lb/ft | ||||||
| 24′ Bumper Pull | |||||||
| GVWR | Beam Specs | ||||||
| 12000 | 8” @ 15 lb/ft | ||||||
| 14000 | 8” @ 15 lb/ft | ||||||
| 16000 | 8” @ 15 lb/ft | ||||||
Axle Specifications
| GVWR | Axles |
|---|---|
| 12000 lb | 6000 lb – 8 Bolt with Electric Brakes & Easy Lube Spindles |
| 14000 lb | 7000 lb – 8 Bolt with Electric Brakes & Easy Lube Spindles |
| 16000 lb | 8000 lb – 8 Bolt with Electric Brakes & Easy Lube Spindles |
Weight Specifications
| Bumper Pull (Tail) (estimated weights) | |||
| Length | 12000 GVWR | 14000 GVWR | 16000 GVWR |
| 18′ | 3560 lbs | 3580 lbs | 3990 lbs |
| 20′ | 3955 lbs | 3975 lbs | 4520 lbs |
| 22′ | N/A | 4500 lbs | 4970 lbs |
| 24′ | N/A | 4950 lbs | 5420 lbs |

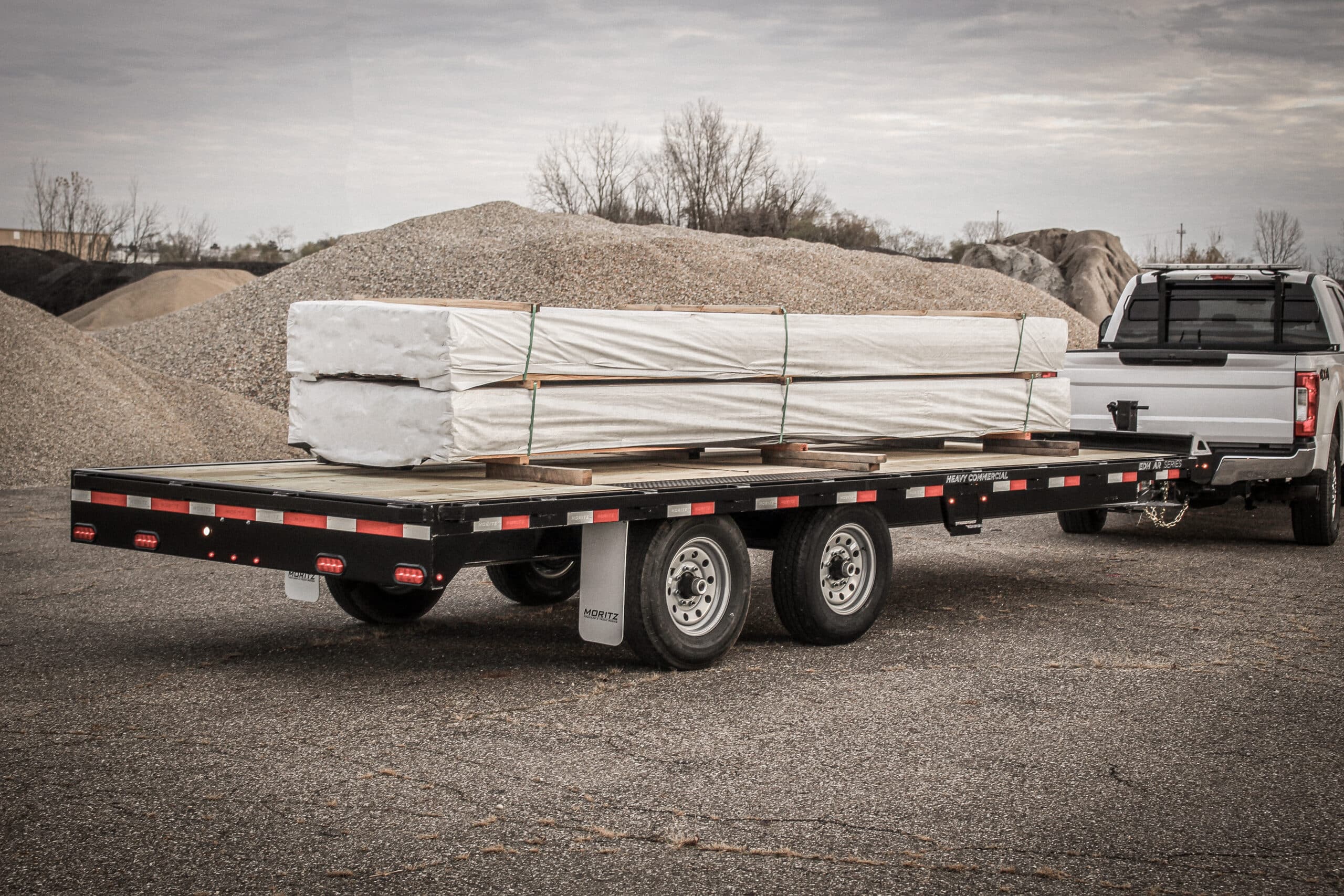

| Bumper Pull (No Tail) (estimated weights) | |||
| Length | 12000 GVWR | 14000 GVWR | 16000 GVWR |
| 18′ | 2860 lbs | 2880 lbs | 3350 lbs |
| 20′ | 3270 lbs | 3340 lbs | 3810 lbs |
| 22′ | N/A | 3800 lbs | 4270 lbs |
| 24′ | N/A | 4260 lbs | 4720 lbs |
Options
- Under Body Tool Box
- Pintle Ring
- No Dovetail or Ramps
- Hydraulic Jack
- Solar Panel with Hydraulic Jack
- Third Center Ramp (Aluminum)
- Steel Split Mesh Gates
- Pipe Spools
- Traction Angles Across Tail
- Spare Tire & Wheel
Colors
- Red
- Black
- Charcoal
